Cover Accessories & Ports

Sample & Access Ports

Get to the liquid or gas under a sealed cover, in any pipe size.

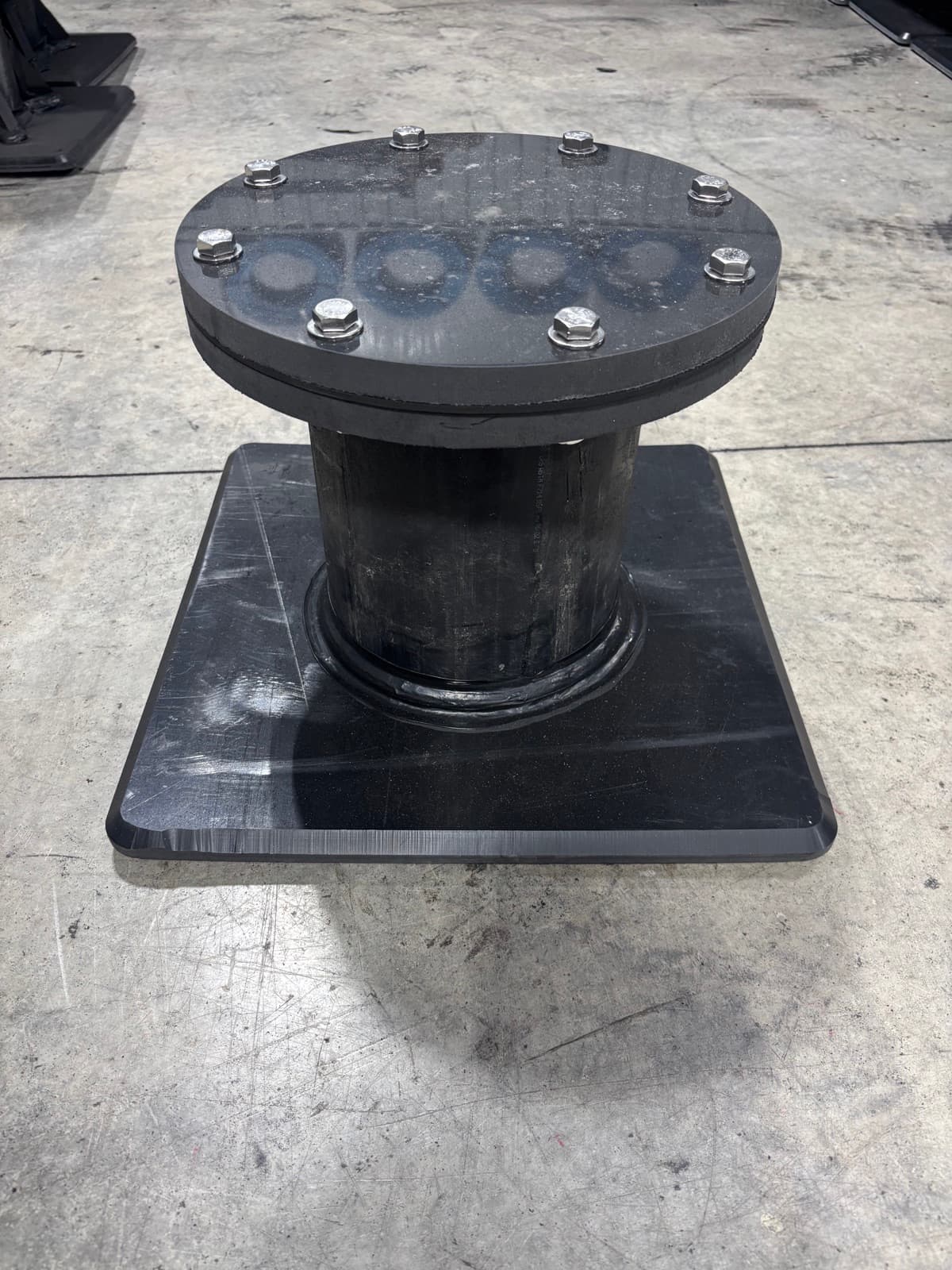

A sample and access port gives operators a sealed, repeatable way to reach the liquid or headspace gas beneath a floating or gas-tight cover without cutting into the membrane. The port stem is fabricated from HDPE and extrusion-welded to a base plate that bonds directly to the cover material for a leak-tight penetration.

The top is built to fit how you work: a bolted flange lid for a fully sealed closure, or a removable rubber cap for quick, tool-free sampling. Because every port is fabricated to order at the EFI shop in Gaston, South Carolina, it can be made in any standard pipe size and matched to your cover thickness and material.

Configure & Request Quote

Build your part

Pipe Size

Top Style

Base Plate

Quantity

Made to order. No online payment. We reply with pricing and lead time.

Specifications

Build & materials

Port & base material	HDPE, extrusion-welded
Hardware	304 or 316 stainless steel bolts
Sizing	Any standard pipe size, made to order
Fabrication	In-house at the EFI shop, Gaston SC

Where It's Used

Common applications

Manual liquid sampling under a covered lagoon digester
Headspace gas sampling and monitoring access
Probe, sensor, or dip-tube insertion points
Maintenance and inspection access through the cover

These parts mount on EFI floating covers and gas-tight digester covers, and are fabricated at the EFI shop in Gaston, SC.

FAQ

Questions about this part

Sample and access ports are fabricated to order, so they can be made in any standard pipe size. Common requests are 2, 3, 4, 6, and 8 inch, and custom sizes are available to match your cover and equipment. Select the closest size on the quote form and note anything custom.

The port is welded to an HDPE base plate that is bonded to the cover membrane, creating a continuous, leak-tight penetration rather than a mechanical clamp through the material. This keeps a gas-tight or floating cover sealed around the port.

A bolted flange lid gives a fully sealed, gas-tight closure for long-term or pressurized service. A removable rubber cap is faster for frequent, routine sampling where a hand-tight seal is enough. You can order either, and mix both across a set of ports.
